Overview:

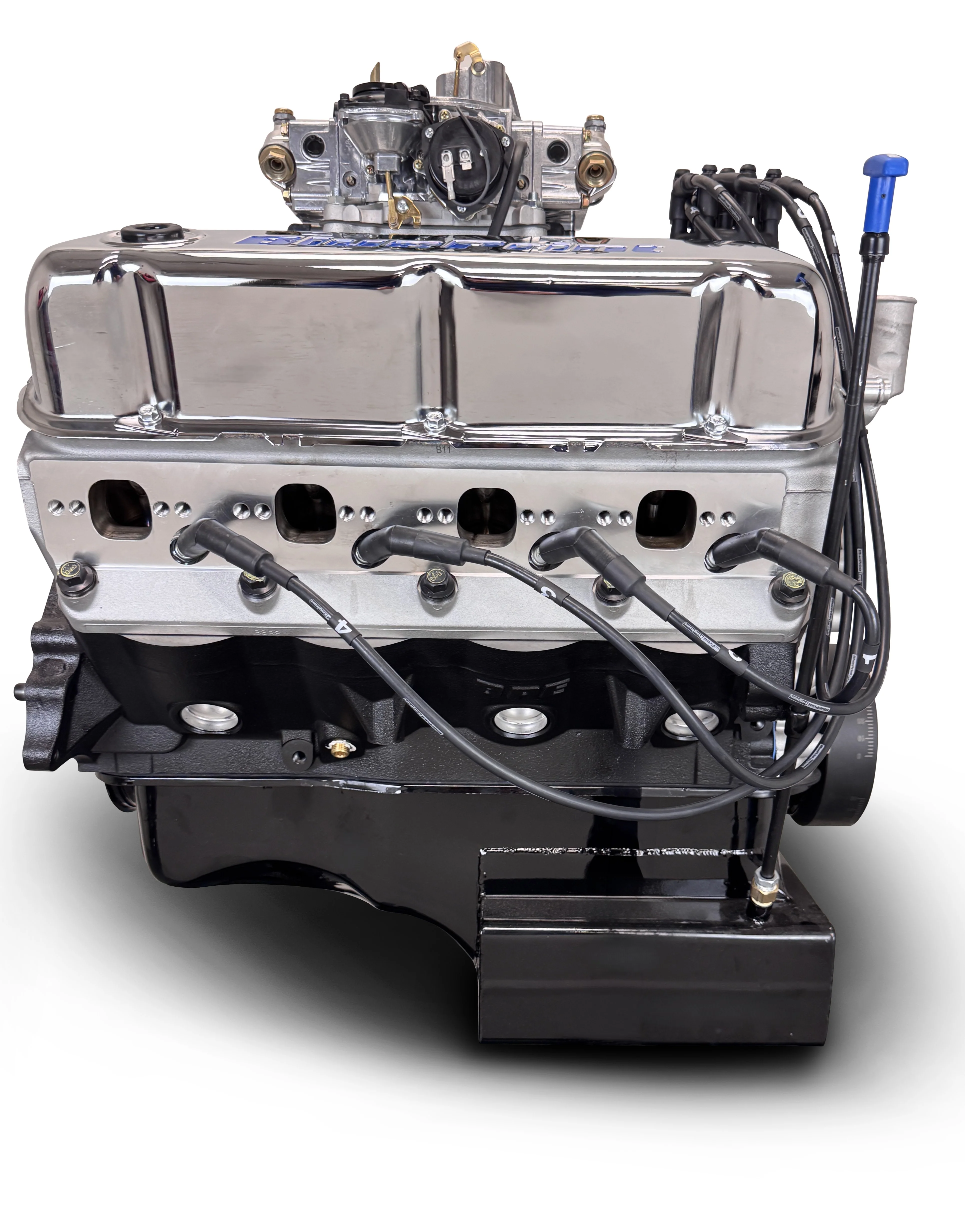

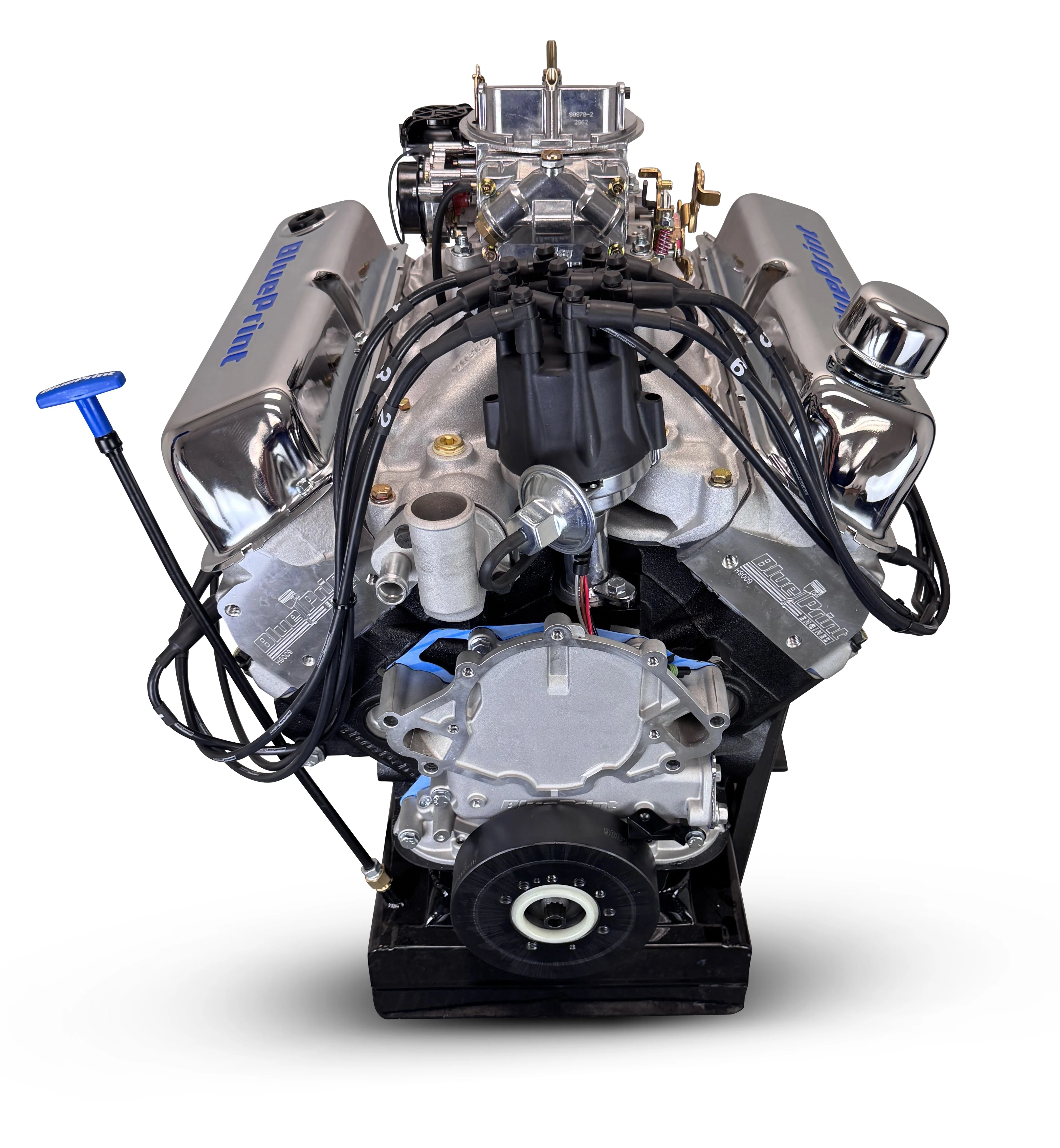

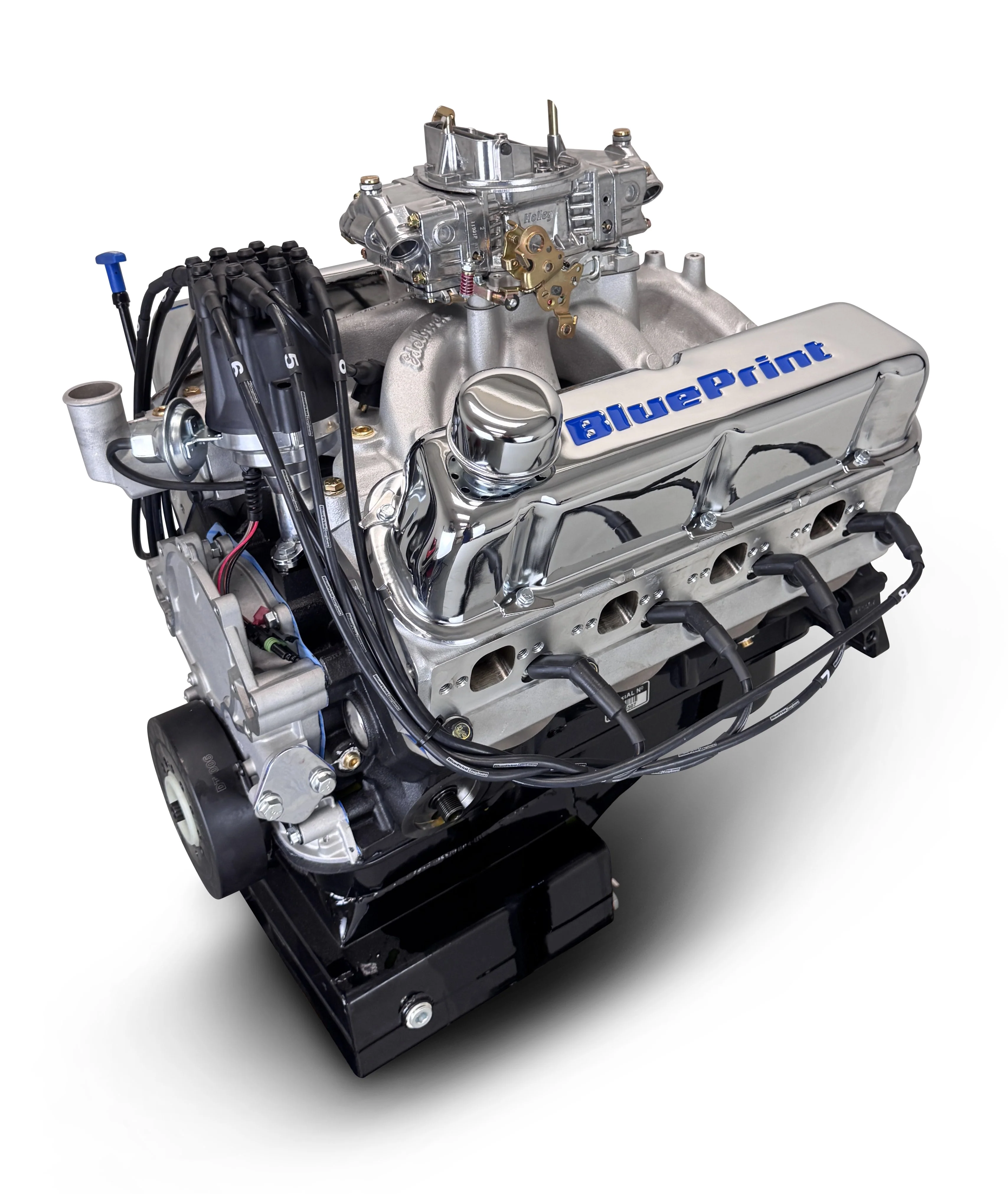

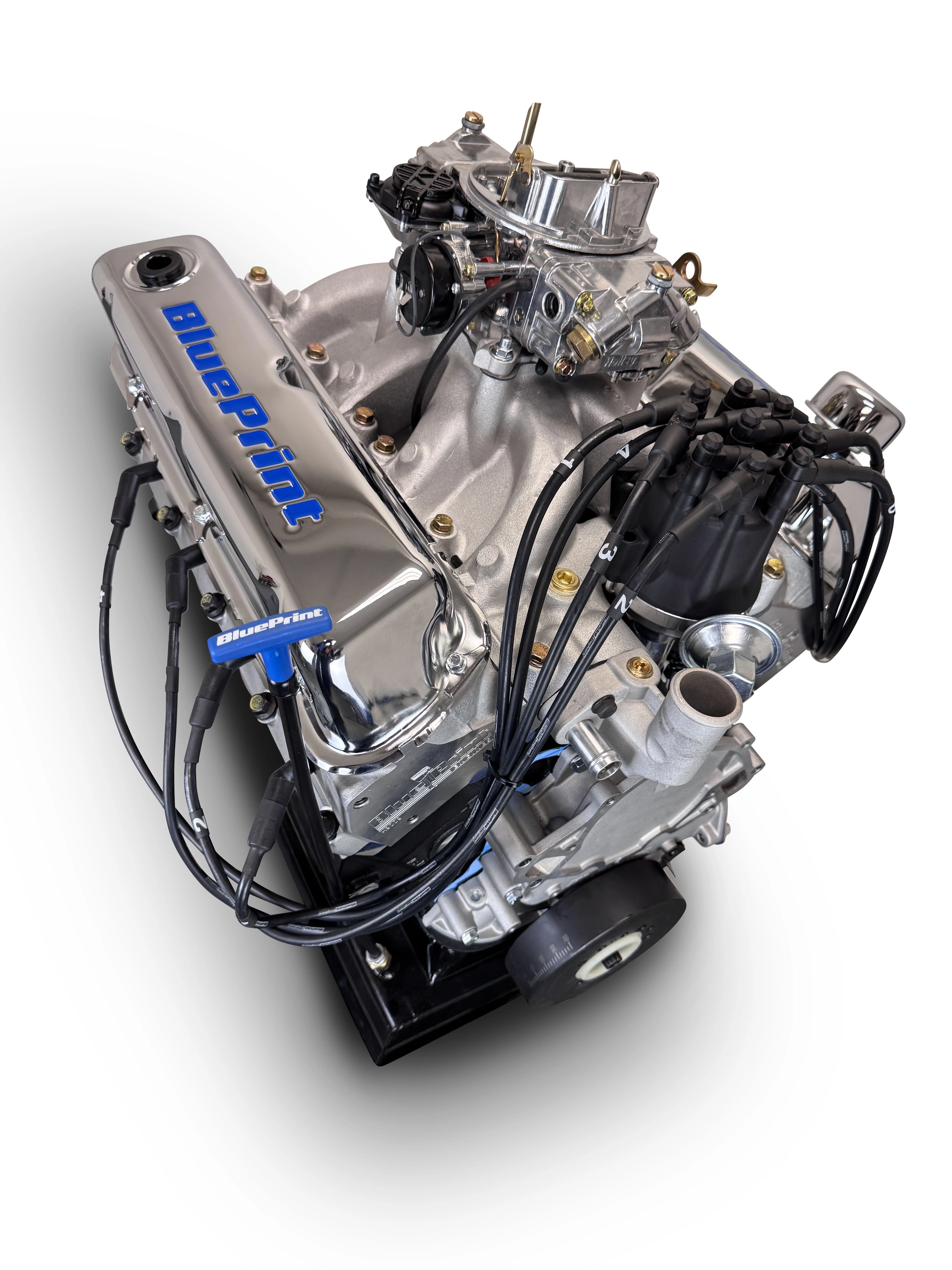

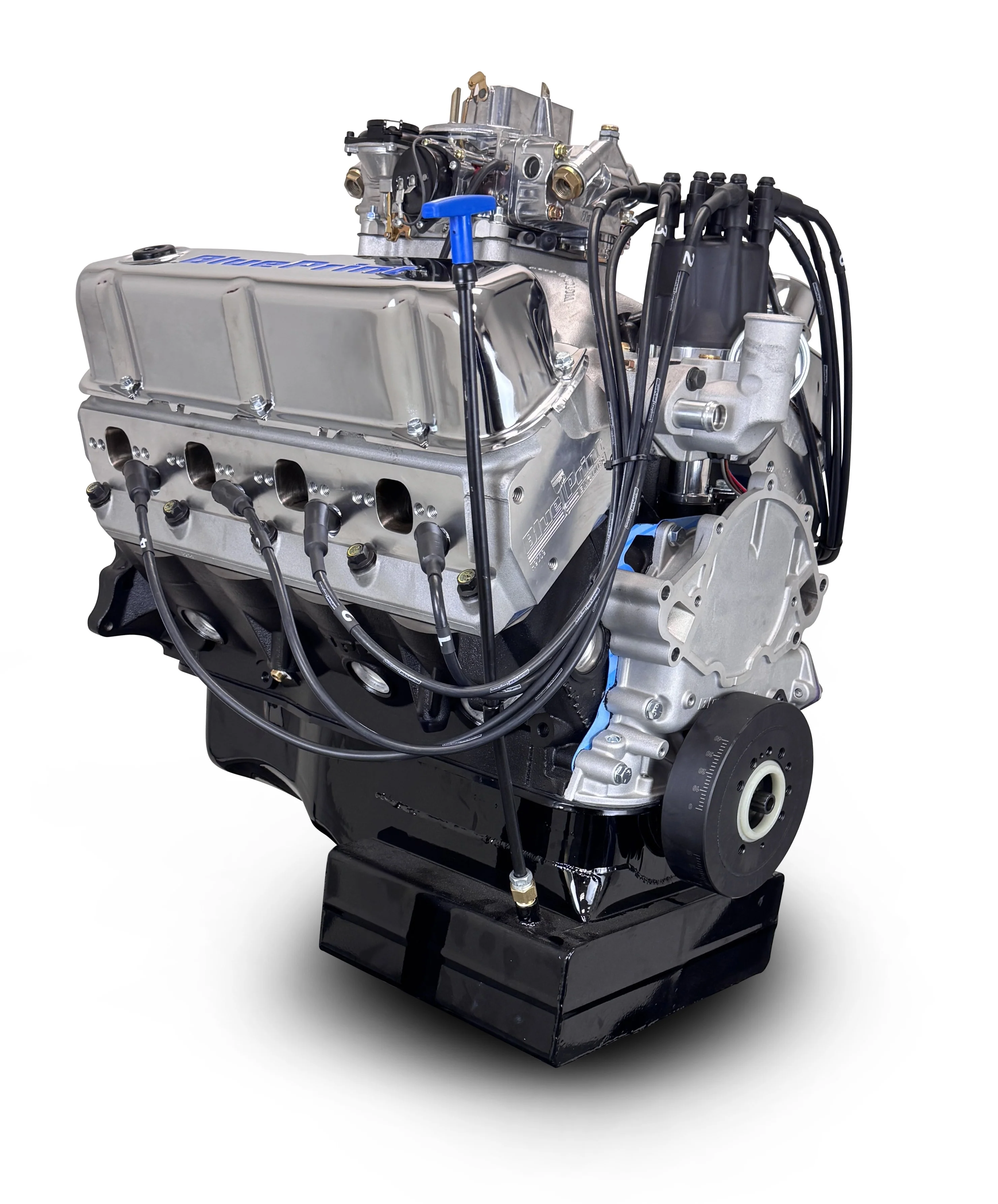

This high-output 427 c.i. Small Block Ford–compatible BluePrint Engine delivers 541 horsepower and 519 lb-ft of torque, making it an excellent choice for aggressive street builds, restomods, and performance enthusiasts seeking a reliable powerplant with serious horsepower and torque. Built around a 9.5-inch deck height Windsor-based BluePrint high-strength cast iron block featuring a 4.125-inch bore, 4-bolt main caps, one-piece rear main seal, and a forged rotating assembly. It is topped with CNC-ported BluePrint Engines aluminum cylinder heads and a matched hydraulic roller camshaft, providing exceptional airflow and a broad, responsive powerband. With a 10.0:1 compression ratio, this engine is optimized for 91+ octane pump gas, delivering impressive performance without sacrificing drivability. Backed by BluePrint Engines’ industry-leading 30-month / 50,000-mile warranty.

The 427ci Small Block Ford achieved modern legend status through its use in the industry’s top Cobra and Cobra replica builders where it became known for producing massive power in lightweight chassis. These engines helped redefine the capabilities of the Windsor-based platform, particularly in high-end Cobra replicas and continuation-style builds. Weighing significantly less than a traditional big block, the 427 stroker enhances front-end balance, handling, and braking, making it a proven choice for performance-focused applications.

Description:

• Horsepower & Torque: 541 Horsepower / 519 FT. LBS. Torque
• Compression Ratio: 10.0:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• 4.125" Bore
• 4-Bolt Main

• 1-Piece Rear Main Seal

• Passenger Side Dipstick

Rotating Assembly:

• New Forged Crankshaft
• 4.000" Stroke
• Forged 6.2" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• Aluminum Cylinder Heads
• 62cc Chamber
• 2.08" Intake / 1.60" Exhaust Valves
• 205cc Intake / 70cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .608 Intake / .608 Exhaust Lift
• 248 Intake / 258 Exhaust Duration
• @.050-114 Degree Lobe Separation

Also Includes:

• 870cfm Holley Carburetor
• Single Plane Intake Manifold
• Pro Series Distributor
• Valve Covers
• Front Sump Oil Pan
• Timing Cover
• Harmonic Balancer
• Spark Plugs and Wires
