Description:

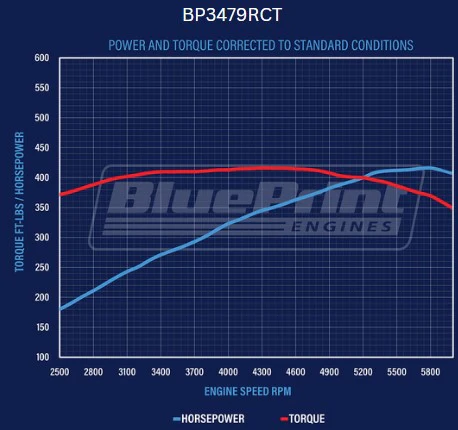

• Horsepower & Torque: 415 Horsepower / 415 FT LBS
• Compression Ratio: 10.0:1
• Aluminum Heads
• Cast Crankshaft

• Hydraulic Roller Cam

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design


Rotating Assembly:

• Cast Crankshaft
• 3.400" Stroke
• Forged 5.400" Connecting Rods
• Forged Pistons
• 28oz Externally Balanced Front and Rear


Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners


Cam Specs:

• Hydraulic Roller Cam
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation


Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total


Also Includes:

• Dual/Rear Sump Oil Pan
• Valve Covers
• Timing Cover
