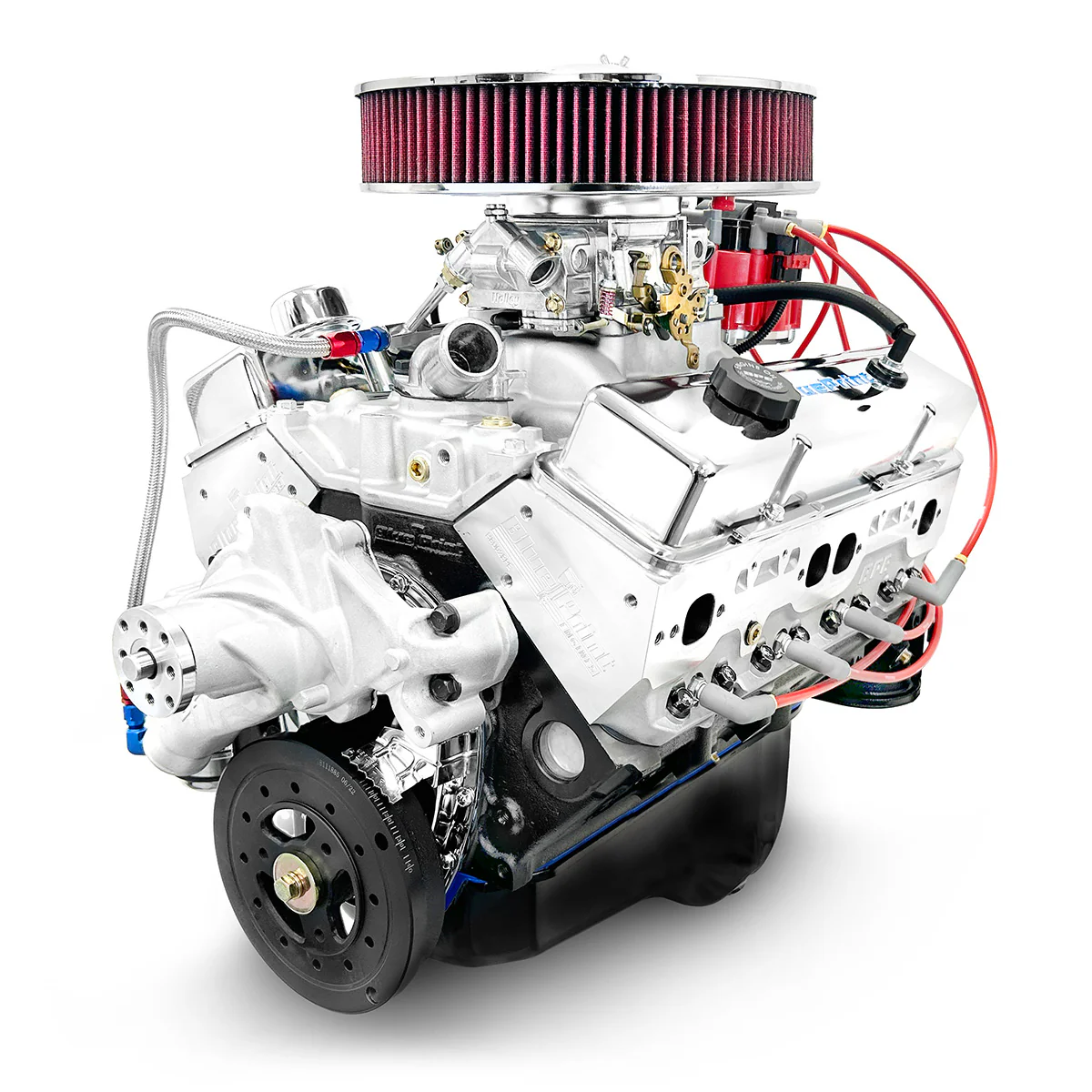

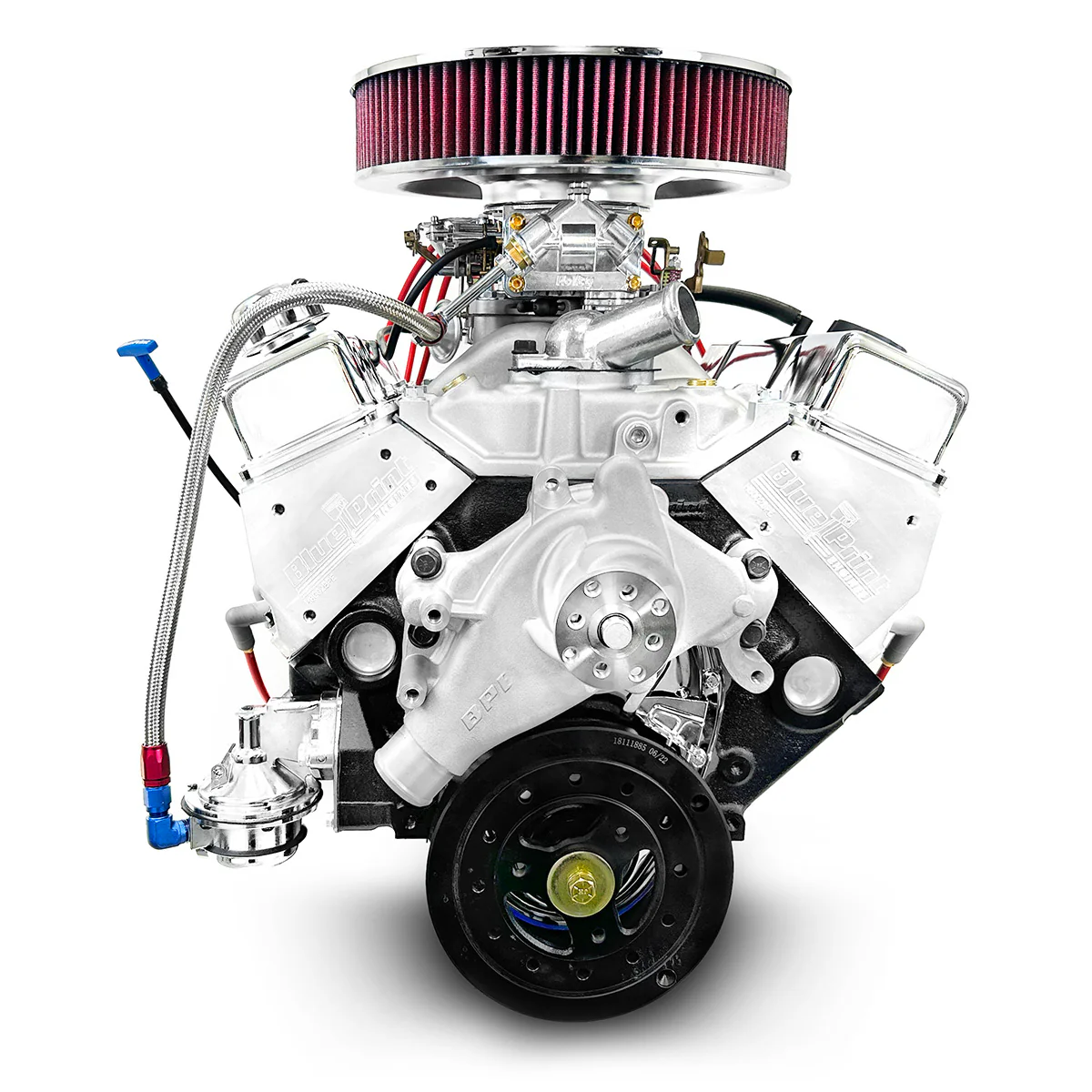

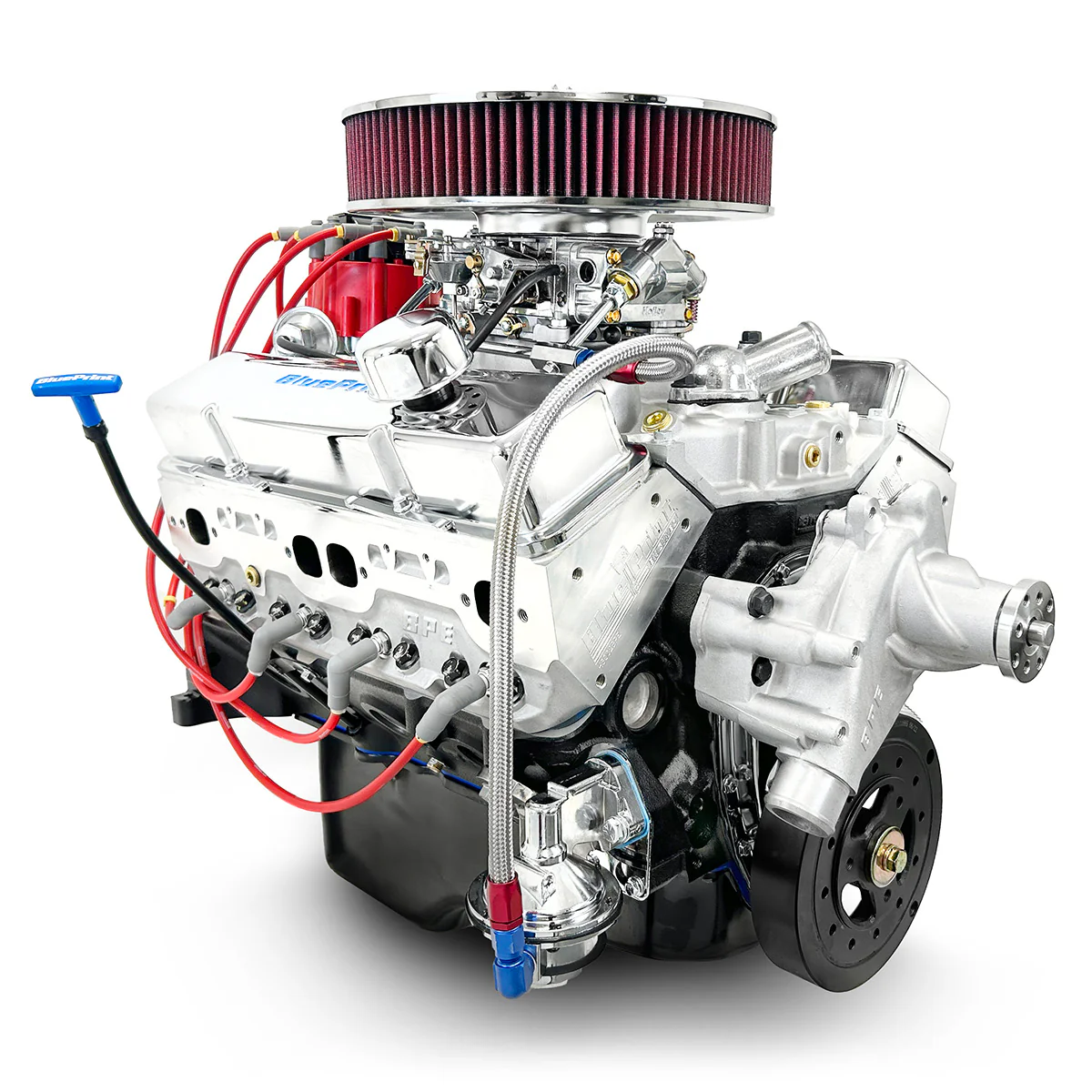

GM Small Block Compatible 383 c.i. Engine - 436 Horsepower - Deluxe Dressed - Carbureted

GM Small Block Compatible 383 c.i. Engine - 436 Horsepower - Deluxe Dressed - Carbureted

OVERVIEW:

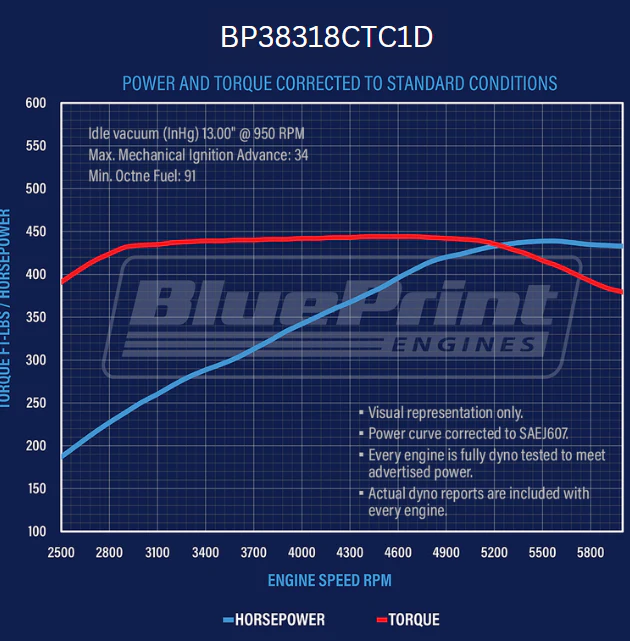

BluePrint's BP38318CTC1D GM Small Block compatible performance crate engines are Dyno tested at our factory with a Holley Classic 750cfm Carburetor to get 436 horsepower and 443 minimum torque values. This engine features a 4-inch bore which mathematically yields a 377ci with a 3.75-inch stroke. This engine comes with a Timing Cover, Valve Covers, Distributor, Dipstick, Oil Pan, Spark Plugs and Wires, Dual Plane Satin Aluminum Intake, Holley 750cfm Carburetor with Manual Choke, and Air Cleaner.Ā

Description:

  • Horsepower and Torque: 436 Horsepower / 443 ft. lbs. TorqueĀ
  • Compression Ratio: 10.0:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Hypereutectic Pistons
  • BluePrint Engines Cast Crankshaft

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Drilled and Tapped for Clutch Linkage
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.000" Bore

Rotating Assembly:

  • Cast Crankshaft
  • 3.750" Stroke
  • OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
  • Hypereutectic Pistons
  • Externally Balanced Front and RearĀ

Cylinder Heads:

  • BluePrint Aluminum Cylinder HeadsĀ - H8002K
  • 64cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 195cc Intake / 75cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .544 Intake / .555 Exhaust Lift
  • 230 Intake / 236 Exhaust Duration
  • @ .050-110 Degree Lobe Separation

Ignition Timing:

  • 34 Degrees Total at 3500 RPM

Also Includes:

  • Holley Classic 750cfm Vacuum Secondary Carburetor w/ Manual Choke
  • Standard Rotation Long Style Water Pump - BPP67265
  • Aluminum Intake Manifold - BPP350VINT
  • Thermostat and Thermostat Housing
  • Mechanical Fuel Pump -Ā BPP61073
  • HEI Distributor - BPP350RBK
  • Valve Covers -Ā BPP9518
  • Fuel Pump - BPP61073
  • Harmonic BalancerĀ
  • Spark Plug Wires
  • Timing Cover
  • Spark Plugs
  • Air Cleaner
  • Oil Pan

Recommended Break in Oil:Ā BPP710 (Click Here)

Recommended Service Oil:Ā BPP10W30 (Click Here)

Recommended Oil Filter:Ā BPP51061 (Click Here)

Notes:

  • *Will not clear a stock Corvette hood. Please call for special build options.
  • This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
  • Not for use in pollution-controlled vehicles.
  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
