GM LS Compatible 427 c.i. Engine and T56 Manual Transmission - 830 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System

Product image 1
Product image 2
Product image 3
Product image 4

GM LS Compatible 427 c.i. Engine and T56 Manual Transmission - 830 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System

GM LS Compatible 427 c.i. Engine and T56 Manual Transmission - 830 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System

Overview:

BluePrint Engines unleashes serious LS power with this 427 c.i. Builder Series package, delivering a massive 830 horsepower and paired perfectly with a tough, street-proven T56 manual transmission. This combo is built for the enthusiast who wants modern reliability with race-ready punch, all controlled by the Holley Terminator X EFI system for crisp tuning, fast starts, and razor-sharp throttle response. Precision machining, premium internals, and BluePrintā€™s Pro-series build quality ensure the strength to handle every bit of boost, rpm, and abuse you throw at it. For builders chasing a turnkey LS powerhouse thatā€™s ready to hit the streets, the strip, or anywhere in between, this 427/T56 package is pure, modern muscle, delivered.

Description:Ā Ā

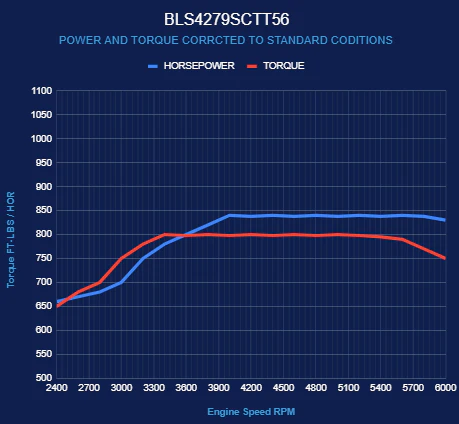

  • Horsepower & Torque: 830 Horsepower / 800 ft. lbs. Torque
  • Compression Ratio: 9.5:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Extended Cylinder Skirt
  • Priority Main Oiling
  • 6-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design
  • Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

  • New Forged Crankshaft
  • 4.125" Stroke
  • Forged 6.125" Connecting Rods
  • Forged Pistons
  • Front and Rear Internally Balanced

Cylinder Heads:

  • BluePrint Aluminum Cylinder HeadsĀ - PS8015
  • 70cc Chamber
  • 2.165" Intake / 1.590" Exhaust Valves
  • 259cc Intake / 102cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .624 Intake / .624 Exhaust Lift
  • 239 Intake / 255 Exhaust Duration
  • @.050-114 Degree Lobe Separation

Ignition Timing:

  • ECM Supplied with Calibration

Holley Terminator X Max Specific Features and Benefits:

  • Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
  • On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
  • Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
  • Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
  • 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
  • Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
  • Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
  • Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.

Also Includes:

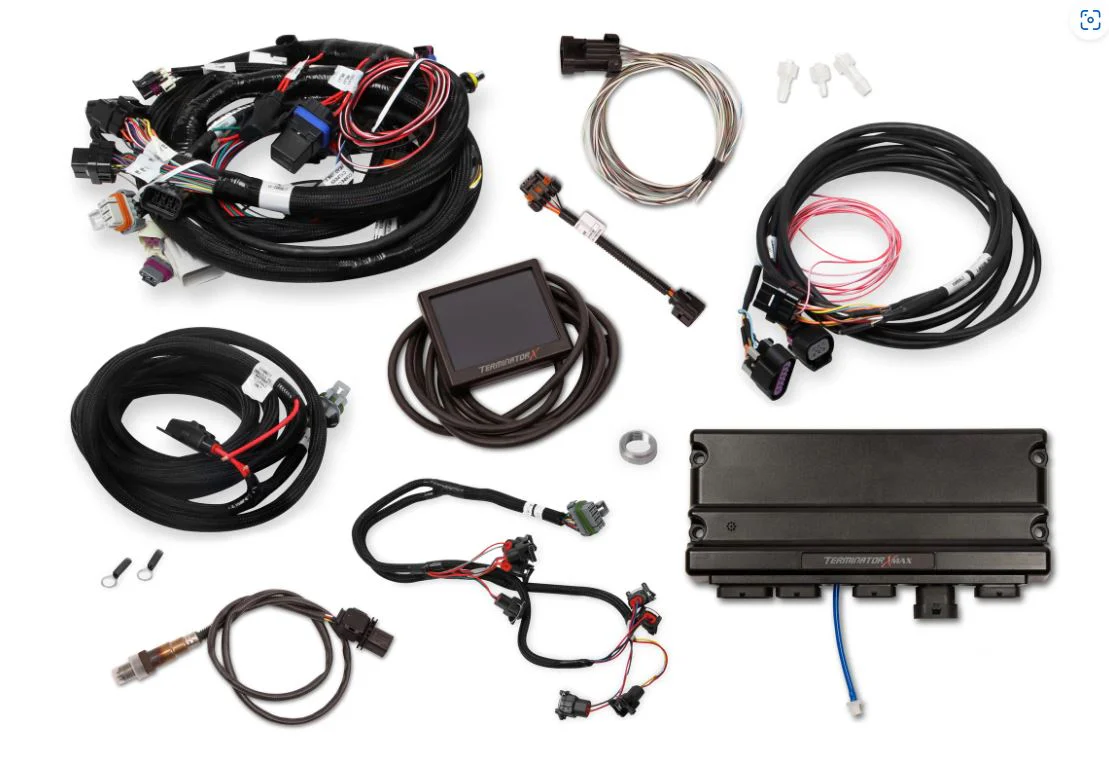

  • Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System
  • 2.65 Liter Magnuson TVS 2650 Supercharger
  • UpgradedĀ Mototron S107 Injectors
  • Electronic Fuel Injection
  • Coil Packs
  • Valve Covers
  • Oil Pan
  • Drive by Wire Throttle Body
  • Timing Cover
  • Spark Plugs and Wires
  • Harmonic Balancer
  • Water Pump

Assembled with Complete T56 Six Speed Transmission Package:

Ā  Ā  Ā  Includes the following:Ā

  • McLeod Super Steel Pro Dual Disk Clutch
  • Steel Bell Housing
  • Billet Flywheel
  • Engine Guard
  • Starter
    • First Gear Ration:Ā 2.66:1
    • Second Gear Ratio:Ā 1.78:1
    • Third Gear Ration:Ā 1.30:1
    • Fourth Gear Ration:Ā 1.00:1
    • Fifth Gear Ration:Ā 0.80:1
    • Sixth Gear Ration:Ā 0.63:1

Notes:

  • This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. PleaseĀ DO NOTĀ follow the Holley EFI manual for the calibration of the ECU.
  • Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
    Not for use in pollution-controlled vehicles or in dry sump applications.
  • BluePrint Engines Recommends Air Intake KitĀ BPPLS01013Ā to ensure correctĀ MAF calculations and Dyno calibrationĀ are maintained with the provided ECU / tuning.
  • Engine/Trans Package Ships assembled
Ā

    $9,899.70

    Original: $32,999.00

    -70%
    GM LS Compatible 427 c.i. Engine and T56 Manual Transmission - 830 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI Systemā€”

    $32,999.00

    $9,899.70
